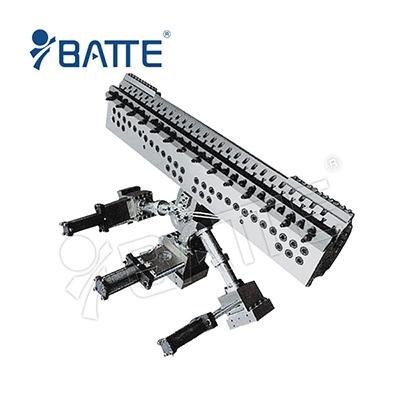

Co-extrusion Die

Custom-engineered Co-extrusion Die, backed by years of experience in the field of die design and manufacturing, provide you with equipment that refines your final product while creating efficiencies in your production process. Each of our extrusion die systems is custom-designed to meet your needs and process parameters. Below you’ll find cast film dies, extrusion coating and laminating dies, and sheet dies with removable lips and deckling to adapt to changes in production needs. Nordson also offers ancillary equipment for added safety and reduced downtime for maintenance, and enhanced product quality through customized manifolds. Browse coextrusion dies to produce side-by-side structures or multi-layer structures, T dies, film dies and other plastic extrusion dies that give you enhanced control over dimensions, reduce waste and offer versatile designs to meet any configuration you need. Then, contact us about manufacturing a custom die for your production line.

Product description On three layers co-extrusion plate die mold, die body 90 degrees adjustable choke rod die lip thickness, add a special distributor, with hangers type port.

Co-extrusion Die Applications:shoes,bage,Oxford cloth ,tarpaulins

Item Specification
Die steel P20/5CrNiMo
Material PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
Width of the die 500mm-5000mm adjustable
Thickness of the product 5-20mm
Choked flow rope  90°
Way of flow passage clothes rack type
Voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
