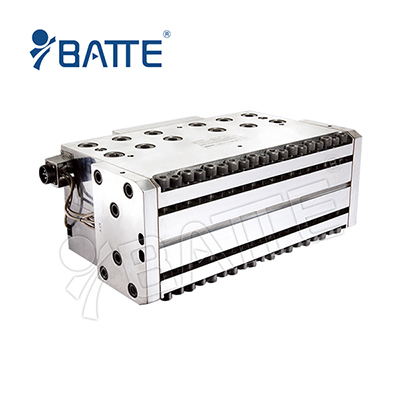

XPS Foam Sheet Die

application:applicance,medical,food,car,electronic

Parameters of the XPS terms Sheet Die

Item Specification Diesteel :P20/5CrNiMo

Material XPS Width of the die: 600mm/900mm/1200mm

Thickness of the product :20-120mm

adjustable Way of flow: passage streaml

XPS terms Sheet Die Application:applicance,medical,food,car,electronic

we adopted high quality alloy steel,mirror steel and our 4 CNC milling machine and 7 drilling machines to make our extrusion dies for export .

T-die capable of producing crust foam board less than 45mm with the upper die lip adjustable, the under lip replaceable and flexible restriction rod adjusting equipment.

Item Specification
Die steel P20/5CrNiMo
Material XPS
Width of the die 600mm/900mm/1200mm
Thickness of the product 20-120mm adjustable
Way of flow passage streamlined
Voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
