During color changeovers, the melt pump primarily addresses t

1. Reducing additional scrap caused by pressure fluctuations

During color changeovers, material viscosity, filter pressure drop, and screw conveying conditions all change. In traditional systems, these changes directly affect die pressure, causing output to fluctuate wildly and resulting in unstable product thickness, width, and surface finish.

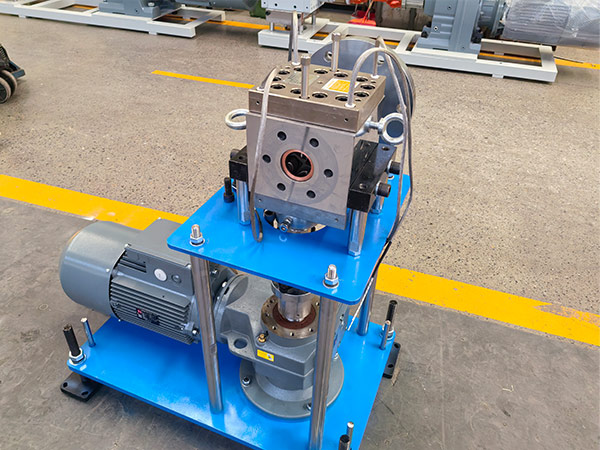

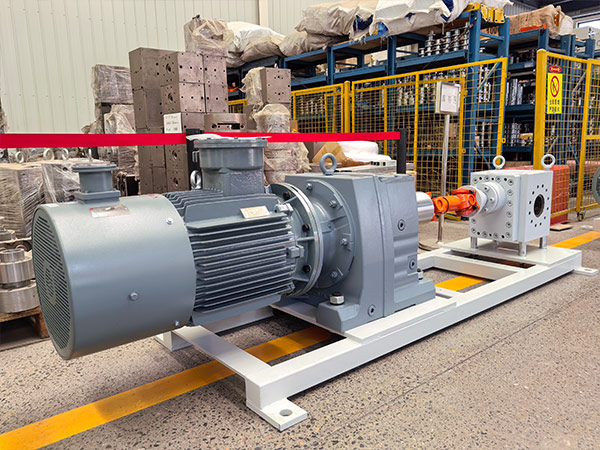

With the introduction of a melt pump—provided that the inlet feed is sufficient and the pump type is appropriately matched to the operating conditions—the pump’s output maintains a consistent relationship with its rotational speed, significantly reducing pressure fluctuations at the die end. As a result, although purging is still required during the transition phase, significant pressure fluctuations will not cause an additional batch of dimensionally non-conforming products.

2. Shortening the Pressure Recovery Cycle

After a material changeover, the extruder must readjust to the viscosity and flow characteristics of the new material. In particular, when switching between different grades, filler systems, or masterbatch addition ratios, the extruder’s operating point shifts, and it often takes some time for the pressure to return to a stable state.

A melt pump can partially decouple the stable output at the die end from the fluctuations of the extruder, allowing the production line to return to a controllable state more quickly. This is particularly important for production lines producing sheet, plate, cast film, and pipe products, which have strict thickness tolerance requirements.

3. Reducing Screen-Change Disturbances in Conjunction with a Screen Changer

Many production lines clean or replace screens simultaneously during material or color changes. If pressure fluctuations are excessive during screen changes, it can easily lead to insufficient feed at the die, resulting in issues such as material shortages, thin walls, web breaks, and surface ripples in the finished products.

When a melt pump is used in conjunction with a continuous screen changer, the system can better buffer pressure fluctuations in the upstream filtration zone, thereby reducing the impact of screen changes on the die end. The Batte melt screen changer is suitable for thermoplastic applications such as sheet, plate, pipe, profile, blown film, and pelletizing, and can be integrated with components such as melt gear pumps and start-up valves to provide complete system solutions.
