The Role of Melt Pumps in Resolving Unstable Extruder Output
In most cases, unstable extruder output can be effectively addressed at its root cause by installing a melt pump. The core principle involves restructuring the division of labor within the extrusion system to precisely resolve issues related to flow rate and pressure fluctuations, making it suitable for the vast majority of standard production scenarios.
Traditional extruders must simultaneously perform three functions: solid material conveyance, melting and plasticization, and metering and pressurization. With these multiple functions combined, the system is highly susceptible to variations in raw material properties, screw conveying pulsations, and material viscosity fluctuations. This can cause die pressure fluctuations exceeding ±10%, directly leading to issues such as erratic output speeds and dimensional deviations in the final product.

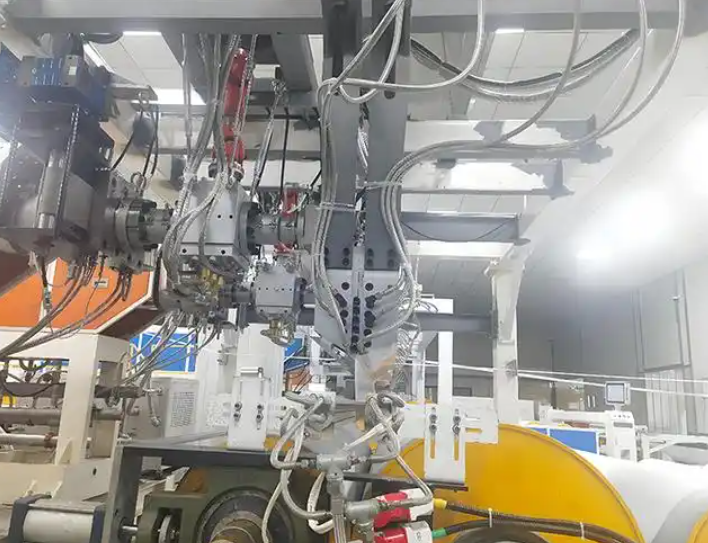

By installing a Bate melt pump in series between the extruder and the die, the system’s functions can be separated: the extruder is dedicated to material plasticization and stable feeding, while the core tasks of metering, pressurization, and maintaining a constant flow rate are handled by the melt pump. As a positive-displacement conveying device, the melt pump delivers a fixed volume per gear rotation and achieves metered output through precise gear meshing. It effectively isolates and absorbs pressure fluctuations from the upstream extruder, controlling die head pressure fluctuations within ±1% and improving flow accuracy to ±0.5%, thereby fundamentally stabilizing the extrusion output.
The advantages of melt pumps are particularly pronounced for heat-sensitive and highly filled materials prone to fluctuations. Once installed, the extruder can operate at low backpressure, significantly reducing shear-induced heat generation in the material. This prevents output abnormalities caused by thermal degradation while also reducing screw wear and extending the service life of the entire machine.
It is important to note that melt pumps have certain limitations: if unstable output is caused by fundamental mechanical issues such as severe equipment wear, feed bridging, or abnormal feeding, a melt pump cannot replace equipment maintenance or system debugging. These underlying issues must be identified and resolved first, followed by the use of a melt pump to optimize production.
Once fundamental equipment issues have been resolved, installing a melt pump is the most direct and efficient solution for addressing unstable extruder output and improving product precision.
